Handling cookies with Fetch's credentials

Published:

Fetch has a credentials option that can be used to send credentials to servers. It has three possible values — omit, same-origin, and include.

  • What does each of these three values do?
  • Does Fetch send cookies to specific servers only?
  • Does Fetch send specific cookies only?

I couldn’t find answers to these questions online so I began experimenting. I want to document my findings and experiments for people who have the same questions.

Summary of my findings

Here’s a quick summary of what I found:

  • If you set credentials to same-origin: Fetch will send 1st party cookies to its own server. It will not send cookies to other domains or subdomains.
  • If you set credentials to include: Fetch will continue to send 1st party cookies to its own server. It will also send 3rd party cookies set by a specific domain that domain’s server.
  • Access-Control-Allow-Credentials is not required to send 3rd party cookies between domains and subdomains. It is only required to send 3rd party cookies between domains.

If you don’t understand the difference between 1st party and 3rd party servers — including how to set them — consider reading my article on the sameSite attribute. where I dive deeper into this topic.

Note: Fetch always sends Authorization headers if you include it (assuming Access-Control-Allowed-Headers contains Authorization). The credentials value doesn’t affect whether Fetch sends authorization headers (unlike what is mentioned on MDN).

Sites vs Origins

We have to be careful about the difference between sites and origins when we work with cookies. Cookies are set across sites — which can be defined by registrable domain names.

  • Sites are only defined by domain names. Subdomains are considered to be the same site.
  • Origins are defined with schemes (http or https), domains, and ports. Changing any of these values is considered a change in origin.

We are working with sites when we’re testing Fetch’s credentials property. Take note!

Github Repository

I included a Github repository so you can test the findings below. I’ll explain the steps to use the Github repository in each of the tests.

If you open up the Github repository, you will find three folders — Host, Subdomain, and External.

  • Host serves a website at a domain — used for both tests
  • Subdomain serves a subdomain of the Host — only used for subdomain test
  • External is the external website — only used for cross-site test

Here are the consistent things you will find in all three folders

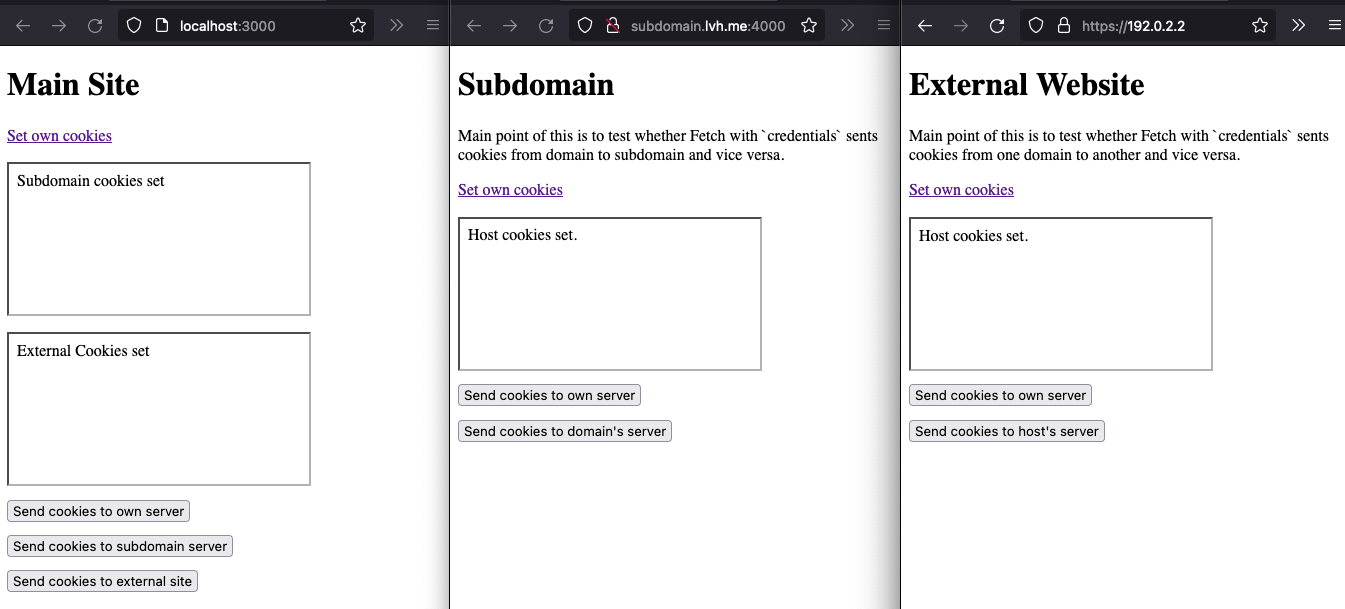

  • You will find a link pointing to /set-cookies. Use this to set cookies for each of these sites.
  • You will find an iframe. This sets cookies from the other domains for you. You can remove this, but you’ll have to set the cookies from those domains manually.
  • You will find some buttons to trigger a Fetch request.

For /set-cookies, we set three different cookie — None, Lax, and Strict. Each folder sets the cookies for their respective folders so we know which cookies came from where.

The code for /set-cookies looks like this:

// In Host
app.use('/set-cookies', async (req, res) => {
  res.cookie('None', 'Host', { sameSite: 'none', secure: true })
  res.cookie('Lax', 'Host', { sameSite: 'lax' })
  res.cookie('Strict', 'Host', { sameSite: 'strict' })
  res.send('Host cookies set.')
})

// In Subdomain
app.use('/set-cookies', async (req, res) => {
  res.cookie('None', 'Subdomain', { sameSite: 'none', secure: true })
  res.cookie('Lax', 'Subdomain', { sameSite: 'lax' })
  res.cookie('Strict', 'Subdomain', { sameSite: 'strict' })
  res.send('Subdomain cookies set.')
})

// In External
app.use('/set-cookies', async (req, res) => {
  res.cookie('None', 'External', { sameSite: 'none', secure: true })
  res.cookie('Lax', 'External', { sameSite: 'lax' })
  res.cookie('Strict', 'External', { sameSite: 'strict' })
  res.send('External cookies set.')
})

Testing how Fetch Credentials work

We’ll go into each of these tests next and I’ll explain what to look out for.

Testing credentials between domain and subdomain

To test credentials between a domain and a subdomain, we have to serve them up. The easiest way to do it is through lvh.me. (I don’t know what lvh.me stands for, but it’s a godsend for testing subdomains on localhost).

Here’s the basic idea:

  • We serve Host on localhost:3000
  • We serve Subdomain on localhost:4000
  • We can navigate to lvh.me:3000 to view Host.
  • We can navigate to subdomain.lvh.me:400 to view Subdomain
  • We send a request to lvh.me:3000 to reach the Host
  • We send a request to subdomain.lvh.me:4000 to reach Subdomain

You probably have figured out by now that lvh.me maps any domain (or subdomain) back to localhost. 😉

Here are my findings.

Fetch from Domain with credentials: include

  • To Domain’s server: Domain’s strict and lax cookies got sent to the server
  • To Subdomain’s server: Subdomain’s strict and lax cookies are sent to the server

Fetch from Subdomain with credentials: include

  • To Subdomain’s server: Subdomain’s strict and lax cookies are sent to the server
  • To Domain’s server: Domain’s strict and lax cookies are sent to the server

Fetch from Domain with credentials: same-origin

  • To Domain’s server: Domain’s strict and lax cookies sent to the server
  • To Subdomain’s server: No cookies sent to the server

Fetch from Subdomain to Domain with credentials: same-origin

  • To Subdomain’s server: Subdomain’s strict and lax cookies are sent to the server
  • To Domain’s server: No cookies are sent to the server

No none cookies are sent in these tests because we’re using a http scheme with lvh.me. You can, if you want to, use a https scheme by configuring your server to use SSL.

I’m working on a video of the actual tests since it’s really hard to explain this in words.

Testing credentials between two domains

We need to use two domain addresses if we want to test how credentials work across two domains.

  • localhost is considered one domain
  • We need another served with another ip address

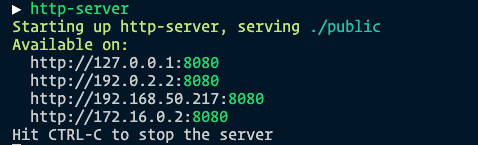

The simplest way is to serve a domain with your LAN IP address. I managed to figure out my LAN IP address with http-server on your computer.

npm install -g http-server
http-server

You can pick any value from this list except for 127.0.0.1 because 127.0.0.1 is synonymous with localhost in web development. I picked 192.0.2.2 for my tests.

There’s a complication here: We want to test whether credentials can send cookies across different websites, but the only type of cookies that can be set from a server to another website are cookies with the sameSite attribute set to none. These cookies also require a secure attribute.

You can find out more about the sameSite attribute here.

Long story short: We need https to test whether cookies can be sent across two different domains on a local environment.

I chose to do this:

  • Serve Host on http — because localhost is considered secure in web development.
  • Serve 192.0.2.2 with https — because we need https to test cookies across different sites.

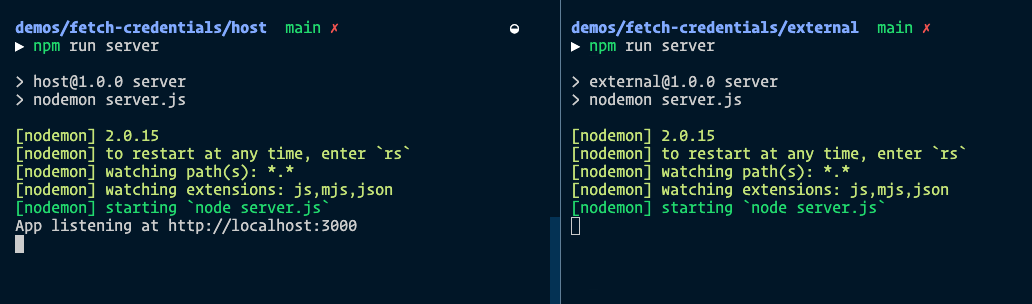

These are configured in both Host and External. If you run npm run server on both of these folders, you should see the following logs:

  • Host will be served with localhost:3000
  • External can be reached at 192.0.2.2. You have to replace this IP address with one that you got from http-server. (I didn’t include the dynamic IP address automatically in the logs because I don’t know how to do it yet).

Note: You need to create your own SSL certs and place them in the certs folder for the https scheme to work. I wrote about how to do this another article, but the basic idea is to use mkcert.

One more thing. The Access-Control-Allow-Credentials is required for any cross-site requests to work, so we need to set this headers on both Host and External.

// CORS headers on Host
app.use((req, res, next) => {
  res.setHeader('Access-Control-Allow-Origin', 'https://192.0.2.2')
  res.setHeader('Access-Control-Allow-Methods', 'GET, POST')
  res.setHeader('Access-Control-Allow-Credentials', true)
  next()
})

// CORS headers on External
app.use((req, res, next) => {
  res.setHeader('Access-Control-Allow-Origin', 'http://localhost:3000')
  res.setHeader('Access-Control-Allow-Methods', 'GET, POST')
  res.setHeader('Access-Control-Allow-Credentials', true)
  next()
})

Here are my findings:

Fetch from Host with credentials: include

  • To Host’s server: Host’s strict and lax, and none cookies are sent to the server
  • To External’s server: External’s none cookies are sent to the server

Fetch from External with credentials: include

  • To External’s server: External’s strict and lax, and none cookies are sent to the server
  • To Host’s server: Host’s none cookies are sent to the server

Fetch from Host with credentials: same-origin

  • To Host’s server: Host’s strict and lax, and none cookies are sent to the server.
  • To External’s server: No cookies are sent to the server.

Fetch from External with credentials: same-origin

  • To External’s server: External’s strict and lax, and none cookies are sent to the server.
  • To Host’s server: No cookies are sent to the server.

I’m working on a video of the actual tests since it’s really hard to explain this in words.

That’s it! I hope this sheds some light for people who’re researching Fetch’s credentials option.
